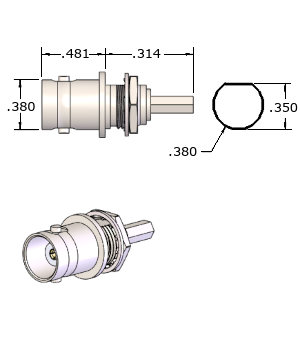

JB81-2
BNC Bulkhead Jack (f) RD316, RG316DS, Front Mount, Crimp 50 Ohm
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency | 4 GHz |
| VSWR | 1.2:1 |
| Mechanical | |
|---|---|
| Weight | 0.000 |
| Piece Part | Material |
|---|---|
| Body | Tri-M3-plated (White Bronze) Brass |
| Contact | Gold-plated Beryllium Copper |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Crimp Ferrule | Nickel-plated Copper |
| Lockwasher | Silicon Bronze |
| Panel Nut | Nickel-plated Brass |
