KO11-KF047-KO11-6.00-MK

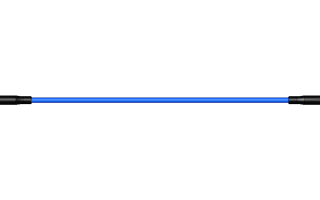

Cable Assembly .047 (KF047) K-Flex™ 047
2.92mm Straight Plug (m)
2.92mm Straight Plug (m)
6.00 in Custom Marked
6.00 in
Assemblies are measured Reference Plane to Reference Plane
| Electrical | Mechanical | ||
|---|---|---|---|
| Impedance (Ω): | 50 | Minimum Bend Radius (in): | 0.125 |
| Effective Frequency (GHz): | DC-40 | Weight (lbs): | 0.0148 lbs |
| Sample Frequency (GHz) | Assembly Insertion Loss (dB - Typical) | Power Handling (Watts - Typical) |
|---|---|---|
| 0.5 | 0.16447 | 81.73 |
| 1 | 0.23510 | 41.68 |
| 2 | 0.33731 | 28.30 |
| 3 | 0.41772 | 23.11 |
| 4 | 0.48330 | 20.01 |
| 6 | 0.59661 | 16.34 |
| 8 | 0.69255 | 14.15 |
| 11 | 0.82515 | 12.07 |
| 12 | 0.86594 | 11.55 |
| 18 | 1.09546 | 9.17 |
| 26.5 | 1.36716 | 7.28 |
| 32 | 1.54892 | 6.61 |
| 40 | 1.76687 | 5.71 |
Designed to Meet
