VO11-KF047-VO11-26.00

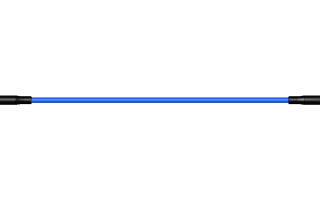

Cable Assembly .047 (KF047) K-Flex™ 047
1.85mm (V®) Straight Plug (m) Solder/Clamp
1.85mm (V®) Straight Plug (m) Solder/Clamp
26.00 in
26.00 in
Assemblies are measured Reference Plane to Reference Plane
Specifications
| Electrical | Mechanical | ||
|---|---|---|---|
| Impedance (Ω) | 50 | Cable Minimum Bend Radius (in) | 0.125 |
| Effective Frequency (GHz) | 65 | Weight (lbs) | 0.022 |
| Max Frequency (GHz) | 65 | Max VSWR | 1.35:1 |
| Max Insertion Loss @ Max Frequency | 0.24186 | ||
Performance Data
| Sample Frequency (GHz) | Insertion Loss (dB) | Power Handling (W) |
|---|---|---|
| 0.5 GHz | N/A | N/A |
| 1 GHz | 0.81876 | 41.68 |
| 2 GHz | 1.17881 | 28.30 |
| 3 GHz | 1.46371 | 23.11 |
| 4 GHz | 1.69429 | 20.01 |
| 6 GHz | 2.09544 | 16.34 |
| 8 GHz | 2.43537 | 14.15 |
| 11 GHz | 2.91231 | 12.07 |
| 12 GHz | 3.05960 | 11.55 |
| 18 GHz | 3.89845 | 9.17 |
| 26.5 GHz | 4.89481 | 7.28 |
| 32 GHz | 5.58057 | 6.61 |
| 40 GHz | 6.39152 | 5.71 |
| 50 GHz | 7.33612 | 4.99 |
| 65 GHz | 8.65245 | 4.14 |
