VO11

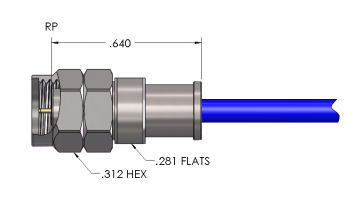

1.85mm Straight Plug (m) .047 Cable

Electrical
Impedance	50 Ohms
Frequency	65 GHz
VSWR	1.20
Insertion Loss	0.24

Mechanical
Mating Torque	7 - 10
Weight	0.008

Piece Part	Material
Body	Beryllium Copper
Body	Passivated Stainless Steel
Contact	Gold-plated Beryllium Copper
Insulator	ULTEM® (Polyetherimide)
Gasket	Silicone Rubber
Coupling Nut	Passivated Stainless Steel
Snap Ring	Beryllium Copper
