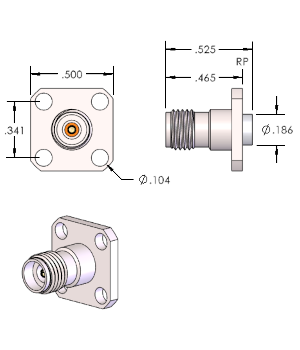

KO64
2.92mm 4-Hole Panel Mount Jack (f) .047 Cable
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency | 40 GHz |
| VSWR | 1.25:1 |
| Mechanical | |
|---|---|
| Weight | 0.000 |
| Piece Part | Material |
|---|---|
| Body | Passivated Stainless Steel |
| Contact | Gold-plated Beryllium Copper |
| Insulator | ULTEM® (Polyetherimide) |
| Rear Body | Passivated Stainless Steel |
